| Rotation | 180°, 360° |
| Output Mode | Front Flange |
| Mounting | Flange |
| Drive Torque Nm@21Mpa | 320 |
| Holding Torque Nm@21Mpa | 1200 |
| Max Cantilever Moment Capacity Nm | 1000 |
| Radial Capacity Kg | 1350 |
| Axial Capacity Kg | 1350 |
| Displacement 180° cc | 121 |
| Displacement 360° cc | 243 |
| Weight 180° Kg | 10 |
| Weight 360° Kg | 12.8 |
| D1 Mounting Flange Dia mm | 89 |
| D2 Housing Dia mm | 119 |
| F1 Mounting Hole mm | M8×1.25 |
| F2 Qty of Mounting Holes | 8 |
| F3 Bolt Circle Dia of Shaft Flange mm | 73 |
| F4 Mounting Hole mm | M8×1.25 |
| F5 Qty of Mounting Holes | 8 |
| F6 Bolt Circle Dia of Endcap Flange mm | 103 |
| F7 Shaft Through-Hole Dia mm | 17 |
| H1 Height mm | 90 |
| L1 Length 180° mm | 143 |
| L1 Length 360° mm | 189 |
| L2 Length 180° mm | 142 |
| L2 Length 360° mm | 188 |
| L3 Distance To Valve 180° mm | 26.9 |
| L3 Distance To Valve 360° mm | 22.6 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4. |
| V1, V2 Port | ISO-11926/SAE series, size 7/16. |
*Specification charts are for general reference only, please consult drawing for actual values and tolerances.

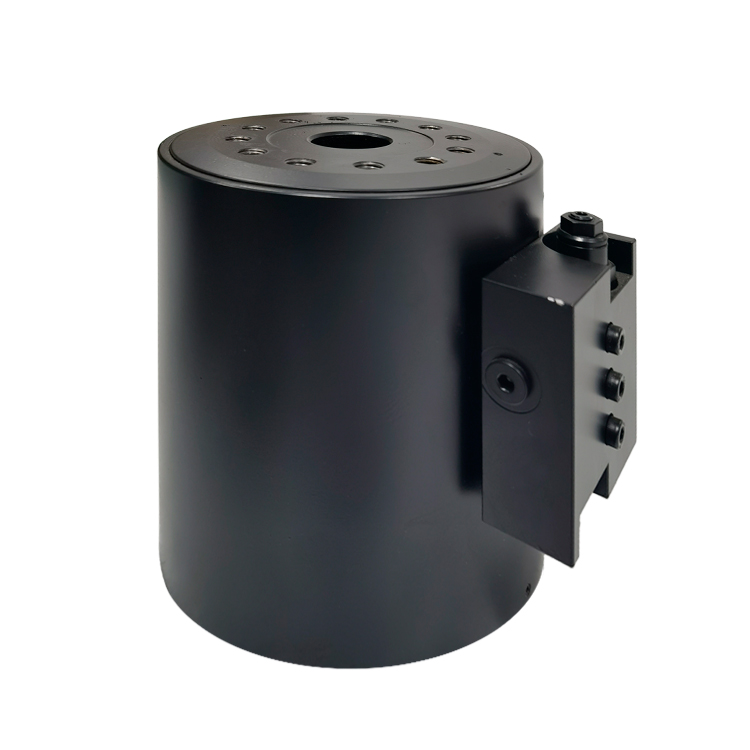

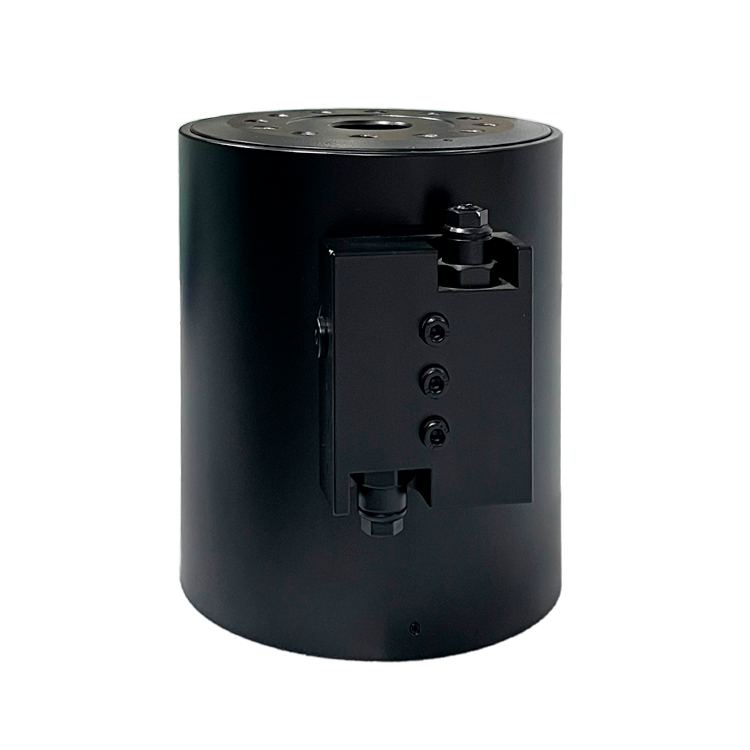

The counterbalance valve protects rotation in the event of a hydraulic line failure and protects the actuator against excessive torque loading. The counterbalance valve is optional on-demand. SUN brands or other top brands are available for different requests.

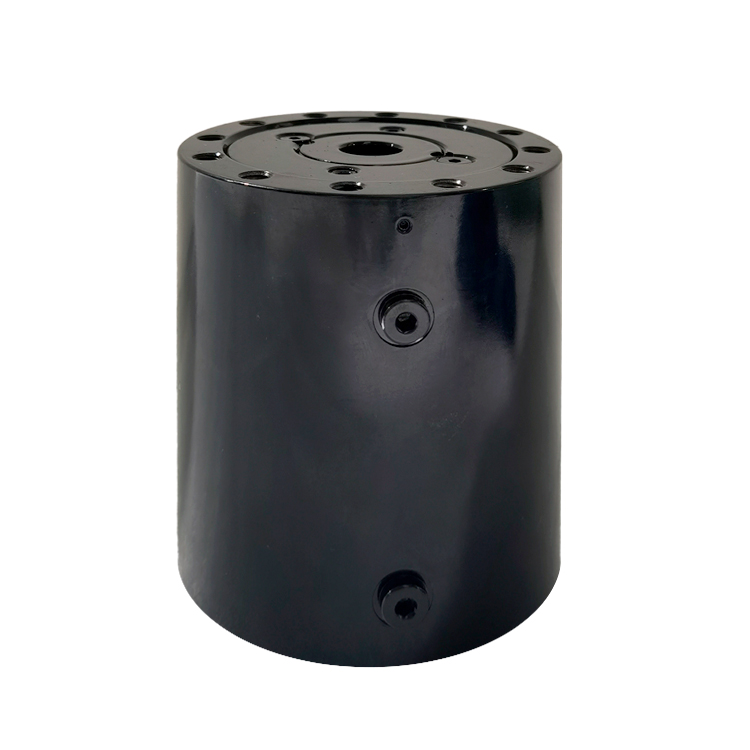

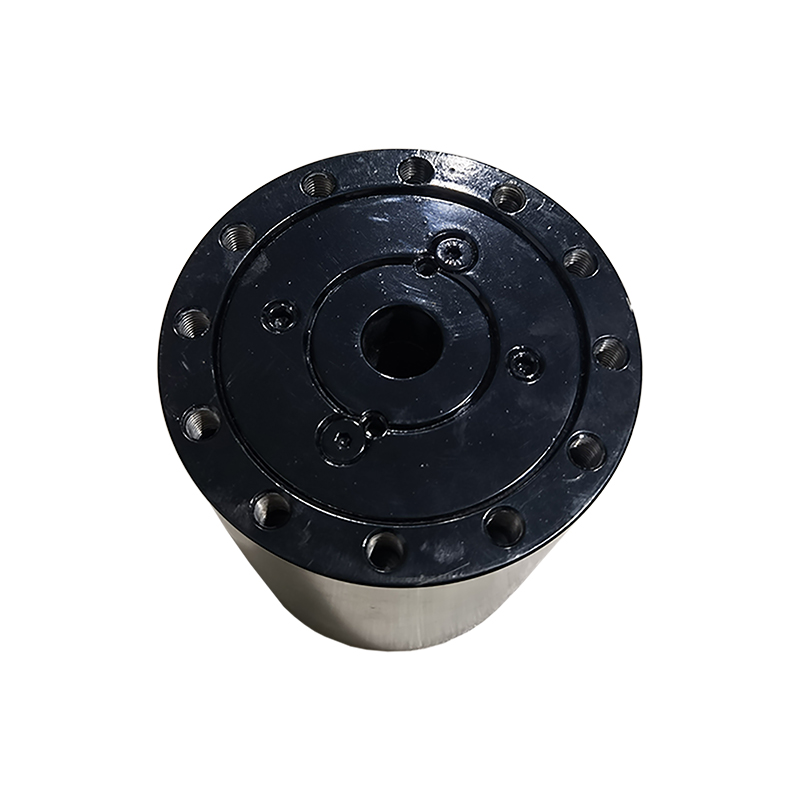

Mobile hydraulic rotary actuators offer simple and cost-effective solutions to move, support and position rotating loads in countless applications. The actuators are designed to replace multiple components and function as a rotating device, mounting bracket and bearing, all-in-one. They feature tremendous torque output and exceptional load bearing capability in compact dimensions.
