| D1 Mounting Flange Dia mm | 77.2 |
| D2 Housing Dia mm | 100 |
| F1 Mounting Hole mm | M8×1.25 |
| F2 Qty of Mounting Holes | 8 |
| F3 Bolt Circle Dia of Shaft Flange mm | 54 |
| F4 Mounting Hole mm | M8×1.25 |
| F5 Qty of Mounting Holes | 8 |
| F6 Bolt Circle Dia of Endcap Flange mm | 86 |
| F7 Shaft Through-Hole Dia mm | 14.3 |
| H1 Height mm | 80 |
| L1 Length 180° mm | 140 |
| L2 Length 180° mm | 138 |
| L3 Distance To Valve 180° mm | 25.4 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4. See drawing for details. |
| V1, V2 Port | ISO-11926/SAE series, size 7/16. See drawing for details. |
*Specification charts are for general reference only, please consult drawing for actual values and tolerances.

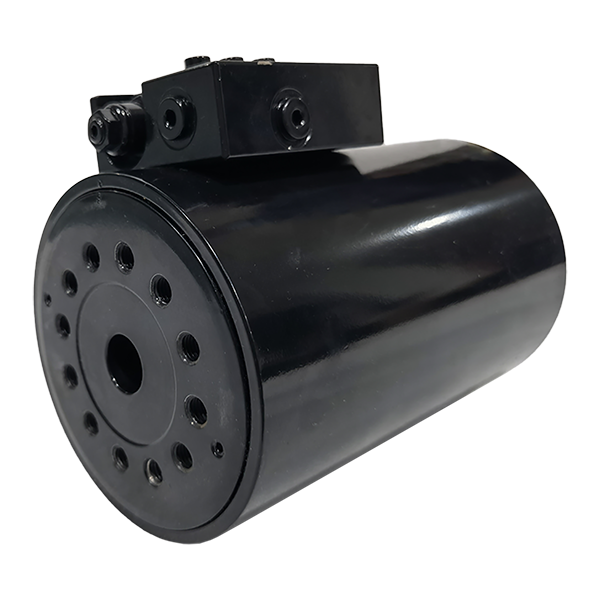

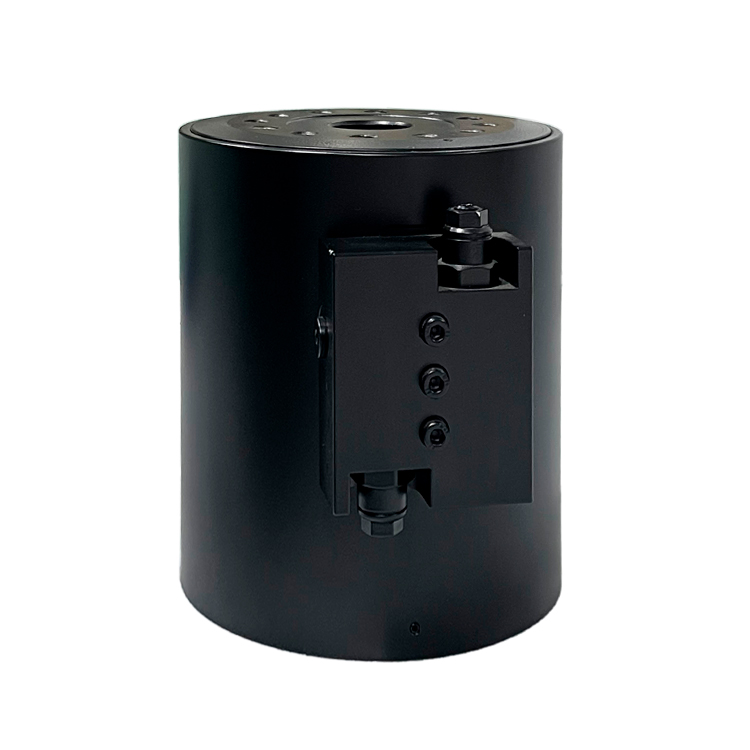

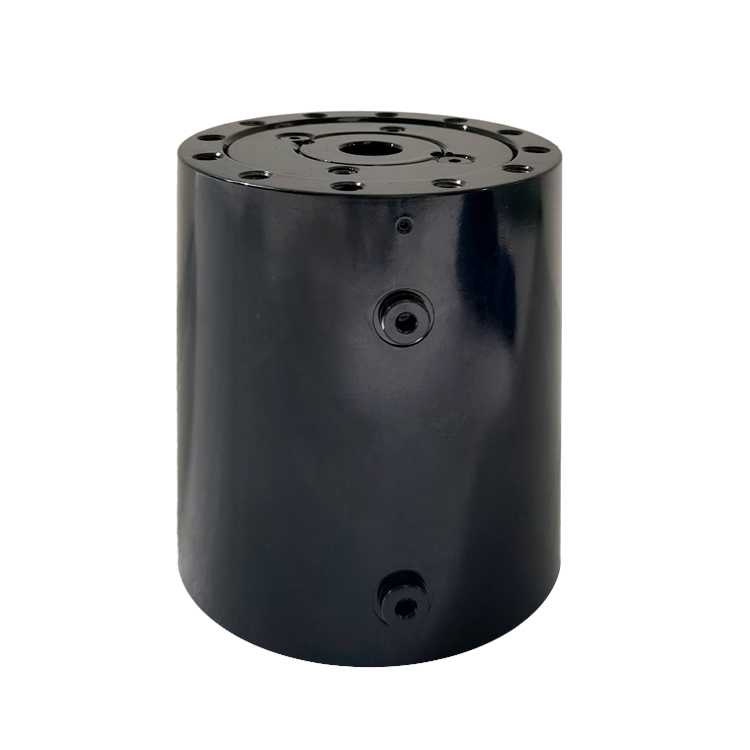

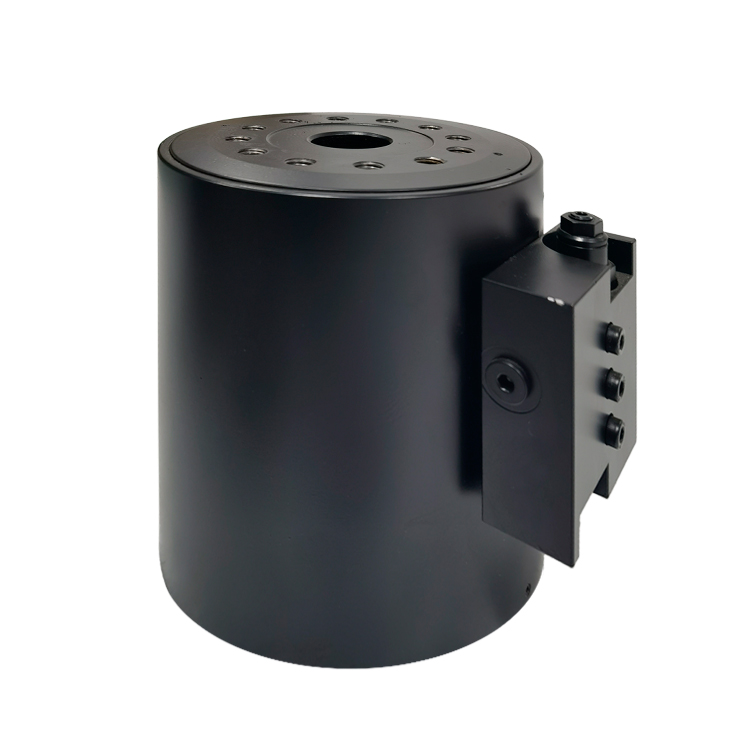

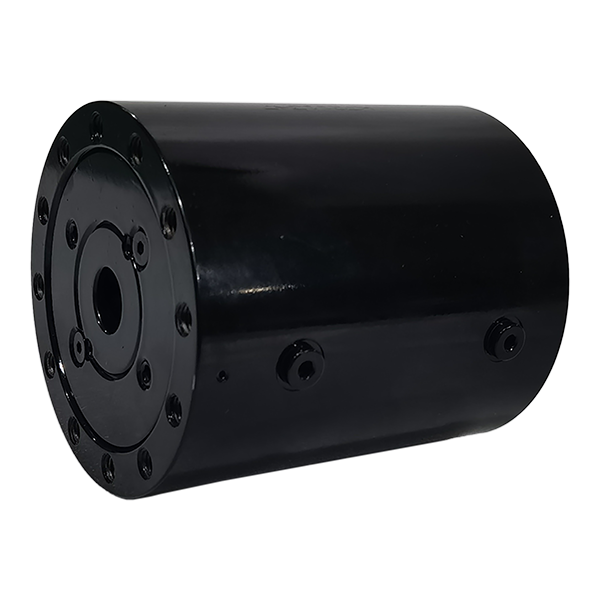

Mobile hydraulic rotary actuators offer simple and cost-effective solutions to move, support and position rotating loads in countless applications. The actuators are designed to replace multiple components and function as a rotating device, mounting bracket and bearing, all-in-one. They feature tremendous torque output and exceptional load bearing capability in compact dimensions.
