Applied to industry of Agriculture, Construction, Energy, Marine, Material Handling, Military, Mining, Truck/Trailer, etc.
| Rotation | 180° |
| Output Mode | Front Flange |
| Mounting | Foot |
| Drive Torque Nm@21Mpa | 500 |
| Holding Torque Nm@21Mpa | 1300 |
| Max Straddle Moment Capacity Nm | 2500 |
| Max Cantilever Moment Capacity Nm | 1360 |
| Radial Capacity Kg | 1380 |
| Axial Capacity Kg | 500 |
| Displacement 180° cc | 132 |
| Weight 180° Kg | 12.5 |

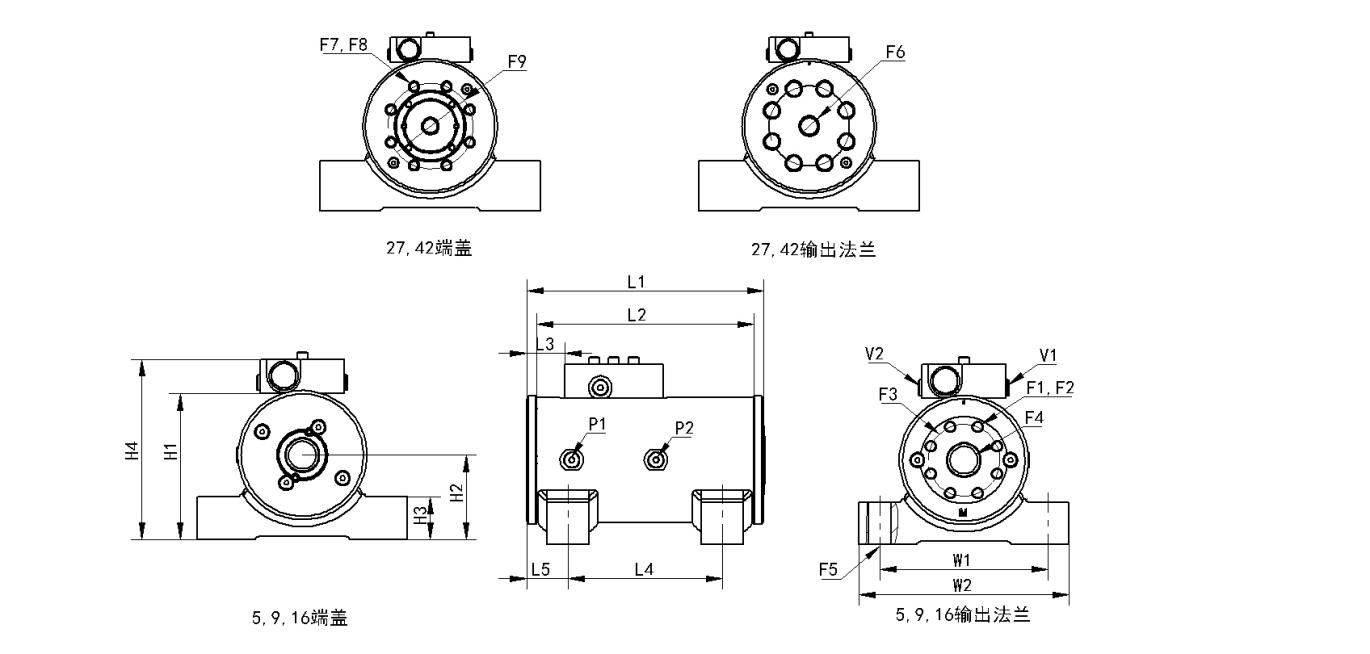

| D1 Mounting Flange Dia mm | 104 |
| D2 Housing Dia mm | 101 |
| F1 Mounting Hole Of Shaft Flange mm | M10×1.5 |
| F2 Qty of Shaft Flange Mounting Holes | 6 |
| F3 Bolt Circle Dia of Shaft Flange mm | 53.9 |
| F4 Clearnace Hole For Shaft Through Bolt Dia mm | M20 |
| F5 Mounting Holes Of Housing Foot | M16 |
| F6 Shaft Center Hole mm | - |
| F7 Mounting Hole Of Endcap Flange mm | - |
| F8 Qty of Endcap Flange Mounting Hole | - |
| F9 Bolt Circle Diameter of Endcap Flange | - |
| H1 Height Without Counterbalance Valve mm | 119 |
| H2 Height To Centerline mm | 66 |
| H3 Foot Height mm | 34.3 |
| H4 Overall Height mm | 146 |
| L1 Overall Length mm | 188 |
| L2 Length Without Rotating Flange mm | 173 |
| L3 Shaft Flange To Counterbalance Valve mm | 32 |
| L4 Mounting Length mm | 111 |
| L5 Shaft Flange To Mounting Hole mm | 37.9 |
| W1 Mounting Width mm | 145 |
| W2 Overall Width mm | 178 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4. See drawing for details. |
| V1, V2 Port | ISO-11926/SAE series, size 7/16. See drawing for details. |
| *Specification charts are for general reference only, please consult drawing for actual values and tolerances. | |

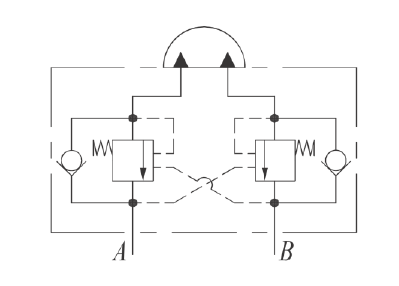

The counterbalance valve protects rotation in the event of a hydraulic line failure and protect the actuator against excessive torque loading. Hydraulic Schematic of Optional Counterbalance Valve: The counterbalance valve is optional on-demand. SUN brands or other top brands are available for different requests.

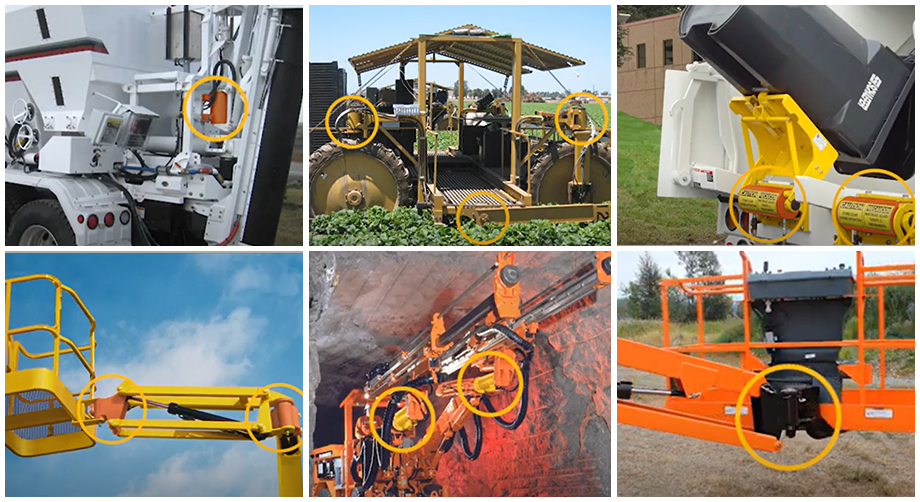

Steering, Boom positioning, Drill positioning, Platform/basket/jib rotation, Conveyor positioning, Davit rotation, Mast/hatch positioning, Access ramp deploy, Attachment rotation, Shotcrete nozzle rotation, Pipe handling, Brush positioning, etc.

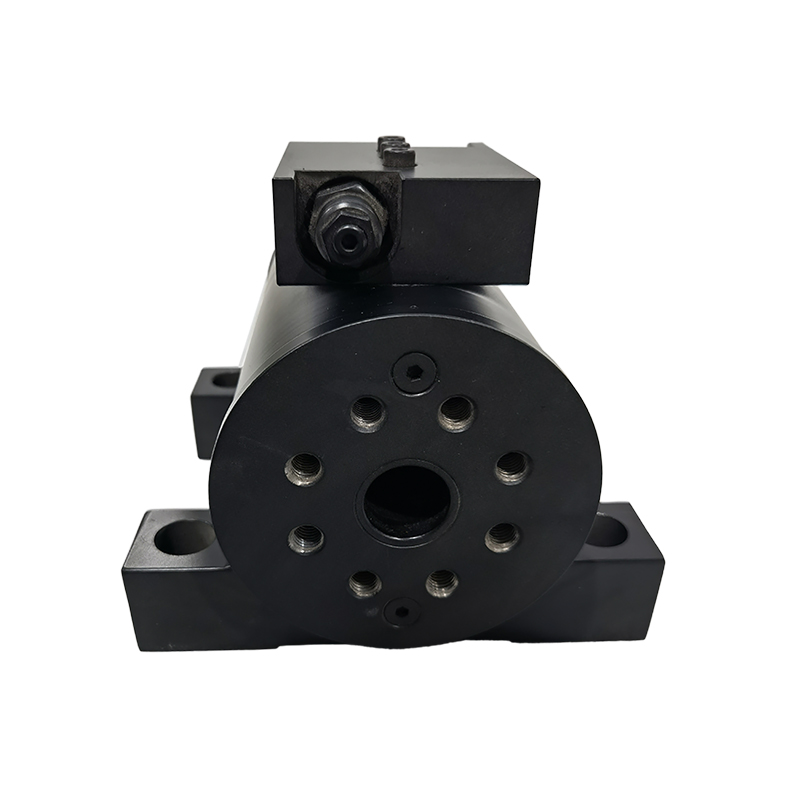

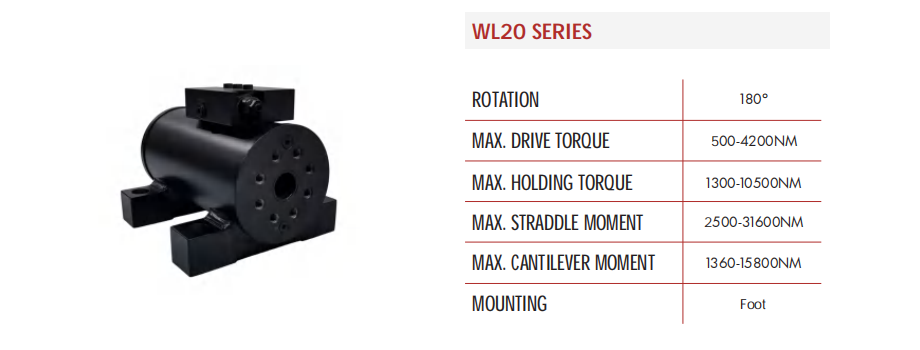

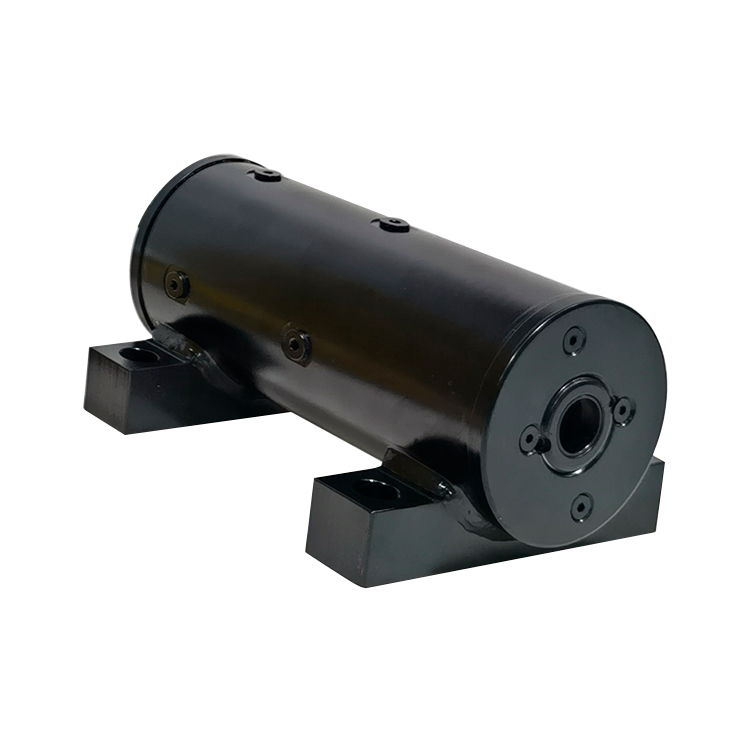

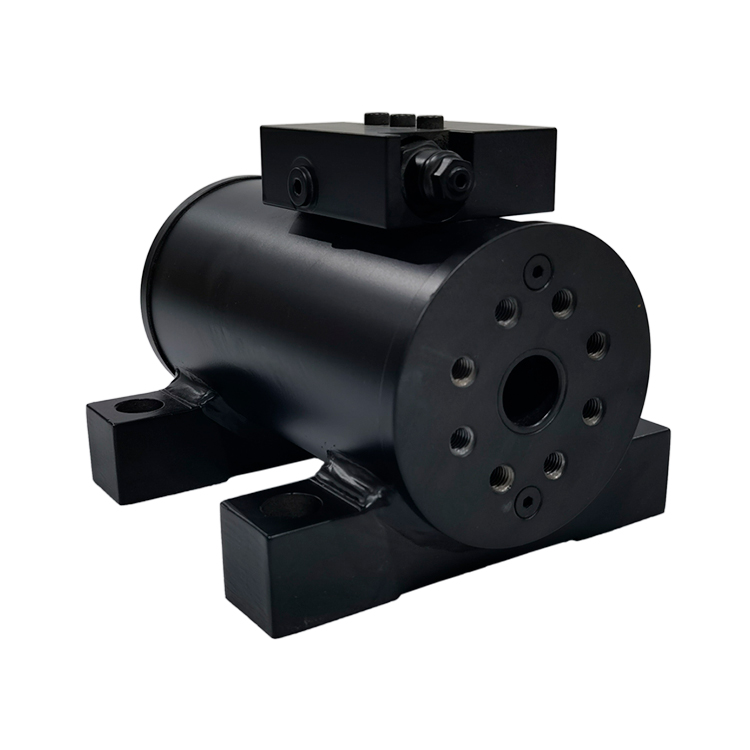

WL20 Series hydraulic rotary actuators offer a cost-effective solution for wide applications. Five standard sizes with torque output from 500Nm up to 4200Nm at 21Mpa. It provides 180 degree rotation with foot mounting type. The typical usage of WL20 Series include but not limited to aerial platform, crane, spider lift, material handling, etc.

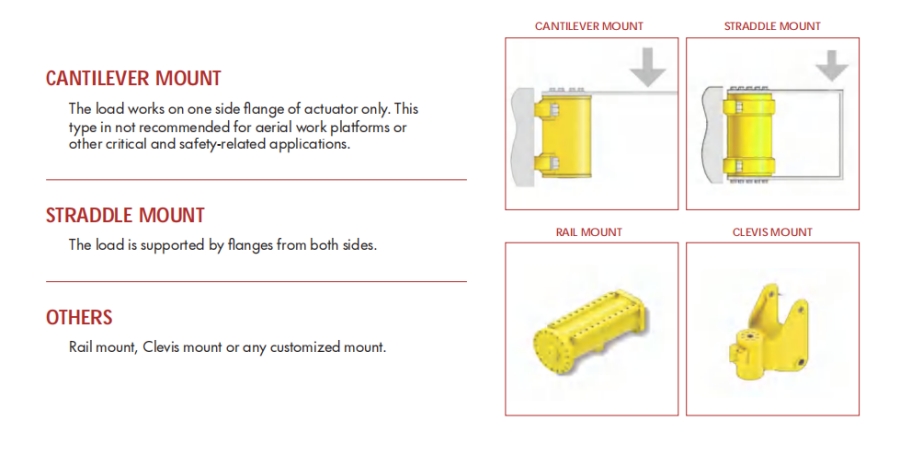

Cantilever Mount: The load is mounted to the shaft flange and is supported at only one end of the shaft. Cantilever mounting is not recommended for aerial work platforms or other critical and safety-related applications.
Straddle Mount: The load is supported at both ends of the shaft.

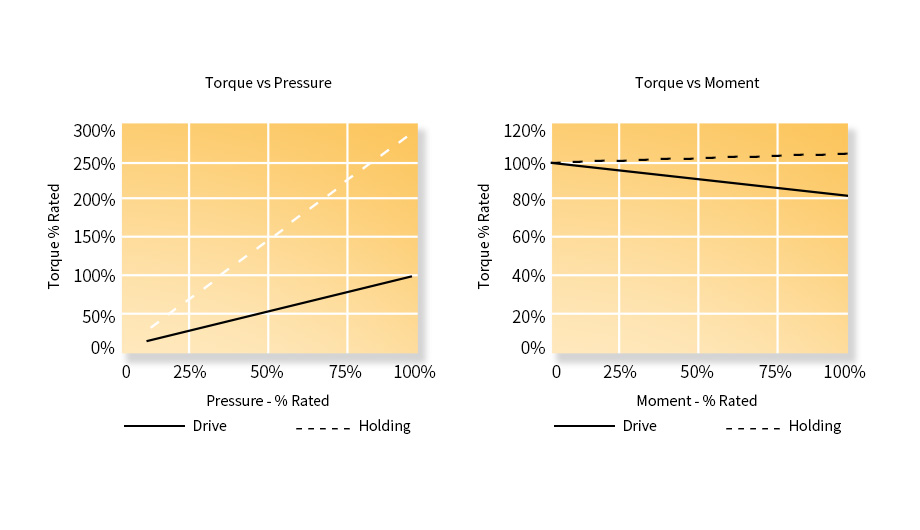

Torque Versus Hydraulic Pressure and Loads: The driving torque and holding torque are approximately linear with hydraulic pressure. As moment loads increase, drive torque may be reduced by up to 15%.
