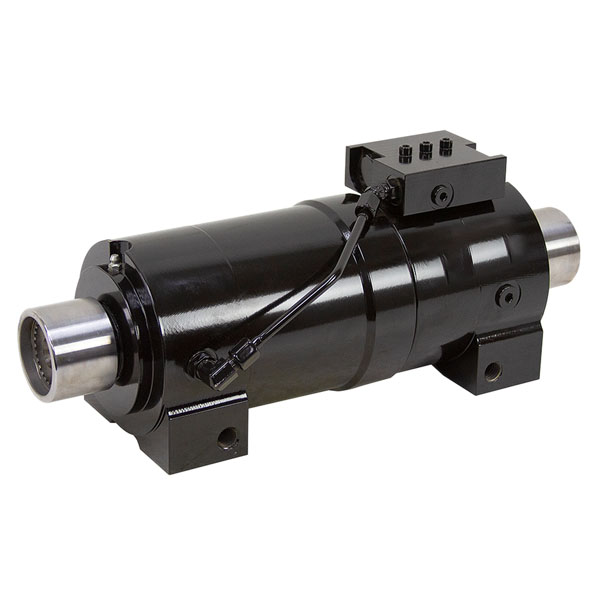

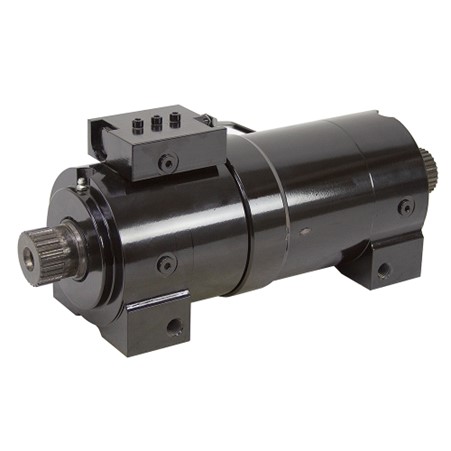

| Parameter | Specification |
|---|---|
| Rotation | 200°, 220° |
| Output Mode | Splindle, Shaft |
| Mounting | Foot |
| Drive Torque Nm@21Mpa | 5000 |
| Holding Torque Nm@21Mpa | 10600 |
| Standard Rotation | 220° |
| Max Straddle Moment Capacity Nm | 7600 |
| Radial Capacity Kg | 3130 |
| Axial Capacity Kg | 3130 |
| Displacement cc | 1360 |
| Weight kg | 58 |
| Dimension Key | Value (mm/Type) |
|---|---|
| D1 Housing Dia mm | 165 |
| D2 Optional Spline Adapter Dia mm | 89.9 |
| F1 Shaft Spline mm | See drawing for details. |
| F2 Shaft Spline Mounting Hole mm | M12 X 1.75 |
| F3 Foot Mounting Hole mm | M20 X 2.5 |
| H1 Height Without Counterbalance Valve mm | 176 |
| H2 Height To Centerline mm | 83.9 |
| H3 Overall Height mm | 196 |
| L1 Overall Length With Optional Adapter mm | 561 |
| L2 Overall Length Without Optional Adapter mm | 546 |
| L3 Overall Length Without Rotation mm | 422 |
| L4 Length of Foot Mounting mm | 320 |
| L5 Mounting Hole To End of Shaft mm | 113 |
| L6 Shaft Extension mm | 61.9 |
| L7 Spline Length mm | 40 |
| L8 Length of Optional Adapter mm | 52.6 |
| W1 Mounting Width mm | 140 |
| W2 Overall Foot Width mm | 170 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4 |
| V1, V2 Port | ISO-11926/SAE series, size 7/16 |
The counterbalance valve protects rotation in the event of a hydraulic line failure and protects the actuator against excessive torque loading. Hydraulic Schematic of Optional Counterbalance Valve: The counterbalance valve is optional on-demand. Top brands are available for different requests.
Torque Versus Hydraulic Pressure and Loads: The driving torque and holding torque are approximately linear with hydraulic pressure. As moment loads increase, drive torque may be reduced by up to 15%.
