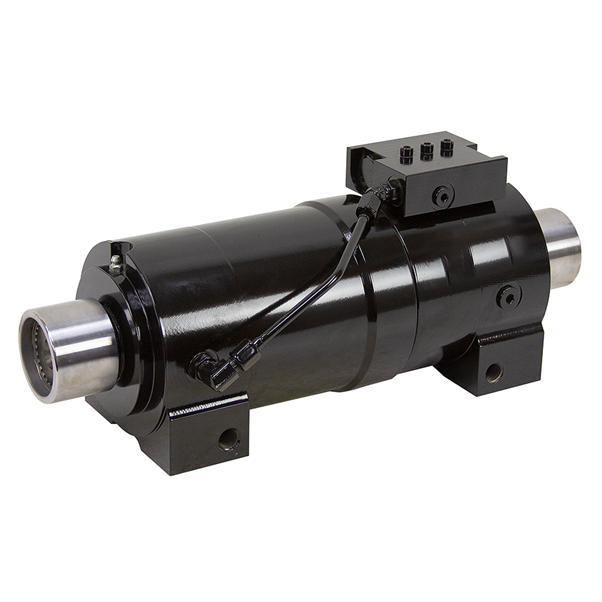

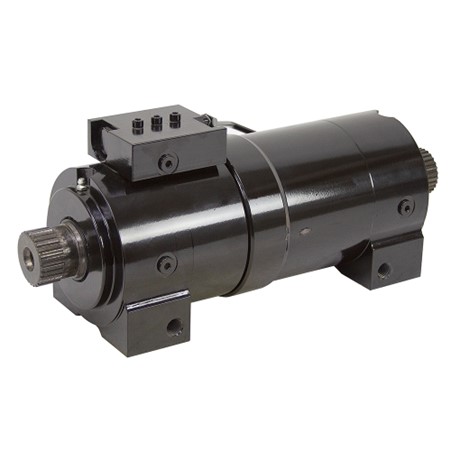

The WL40 Series Helical Hydraulic Rotary Actuator is widely used for applications that request torque generation and high cycle rate. It features an output shaft and 220 degrees of rotation. The torque output ranges from 2800 Nm to 6700 Nm.
The WL40 Series is ideal for applications where torque generation and higher cycle rates are the primary requirements, featuring splined output shafts with 200-220 degrees of rotation.
| Rotation | 220° |
| Output Mode | Spindle, Shaft |
| Mounting | Foot |
| Drive Torque Nm @ 21Mpa | 2800 |
| Holding Torque Nm @ 21Mpa | 6100 |
| Standard Rotation | 220° |
| Max Straddle Moment Capacity Nm | 4200 |
| Radial Capacity Kg | 2040 |
| Axial Capacity Kg | 2040 |
| Displacement cc | 775 |
| Weight kg | 33.6 |
| D1 Housing Dia mm | 140 |
| D2 Optional Spline Adapter Dia mm | 80 |
| F1 Shaft Spline mm | See drawing for details |
| F2 Shaft Spline Mounting Hole mm | M12 X 1.75 |
| F3 Foot Mounting Hole mm | M16 X 2 |
| H1 Height Without Counterbalance Valve mm | 150 |
| H2 Height To Centerline mm | 73.2 |
| H3 Overall Height mm | 173 |
| L1 Overall Length With Optional Adapter mm | 431 |
| L2 Overall Length Without Optional Adapter mm | 417 |
| L3 Overall Length Without Rotation mm | 335 |
| L4 Length of Foot Mounting mm | 265 |
| L5 Mounting Hole To End of Shaft mm | 75.1 |
| L6 Shaft Extension mm | 40.9 |
| L7 Spline Length mm | 20.6 |
| L8 Length of Optional Adapter mm | 32.5 |
| W1 Mounting Width mm | 104 |
| W2 Overall Foot Width mm | 133 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4 |
| V1, V2 Port | ISO-11926/SAE series, size 7/16 |
*Specification charts are for general reference only, please consult drawing for actual values and tolerances.
Hydraulic Schematic of Optional Counterbalance Valve: The counterbalance valve is optional on-demand. SUN brands or other top brands are available for different requests.
Torque Versus Hydraulic Pressure and Loads: The driving torque and holding torque are approximately linear with hydraulic pressure. As moment loads increase, drive torque may be reduced by up to 15%.
