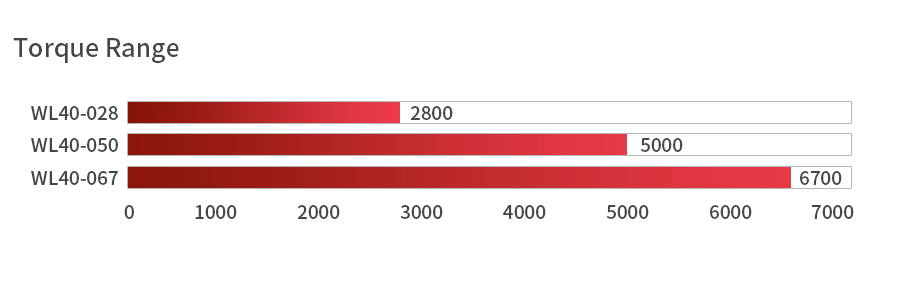

The torque ranges from 2,800N·m to 6,700N·m, so WL40 helical hydraulic rotary actuators are mainly applied to garbage trucks.

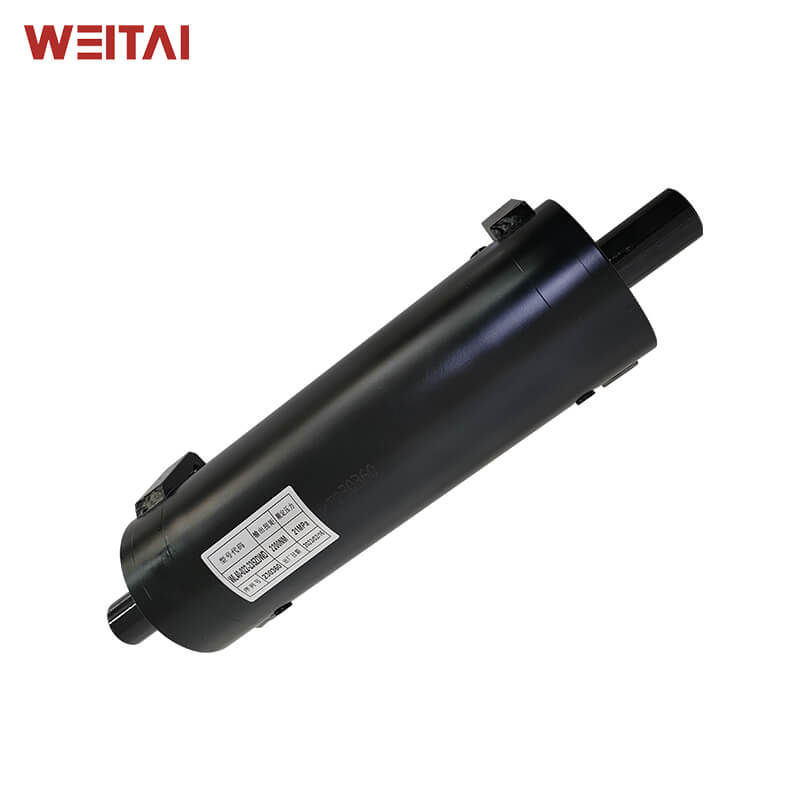

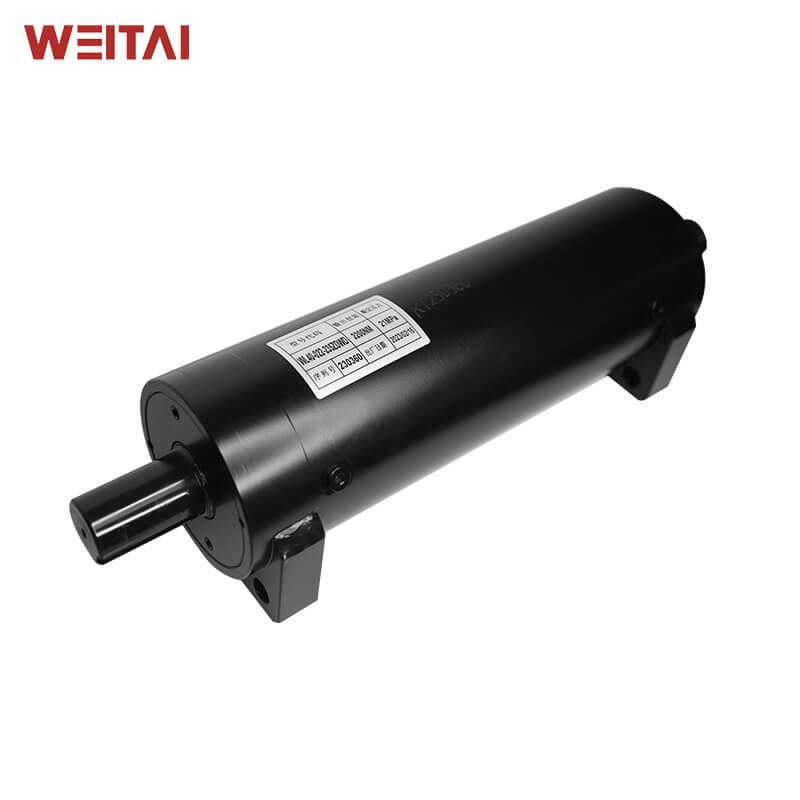

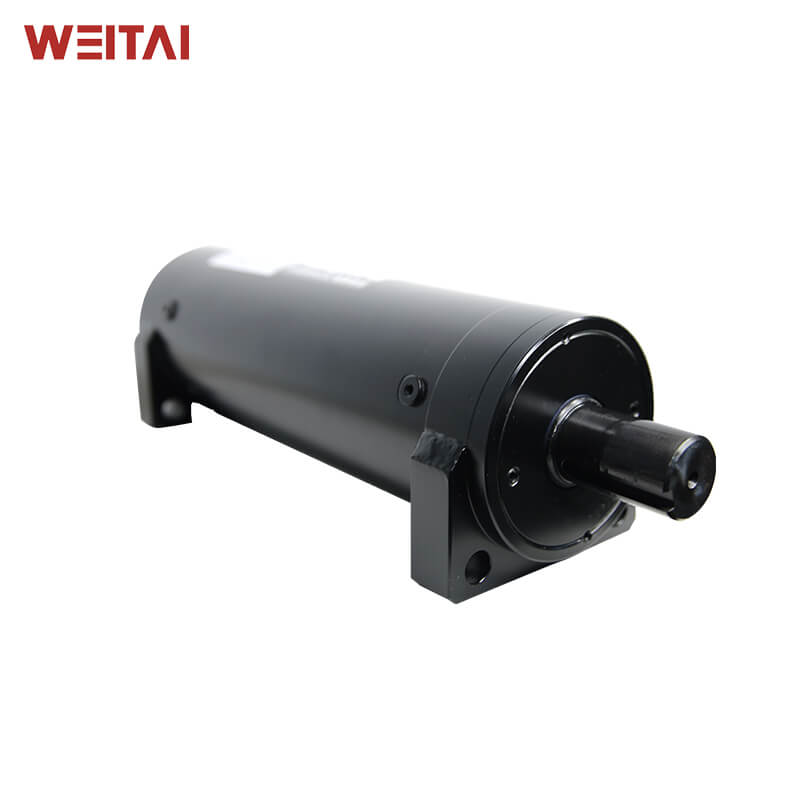

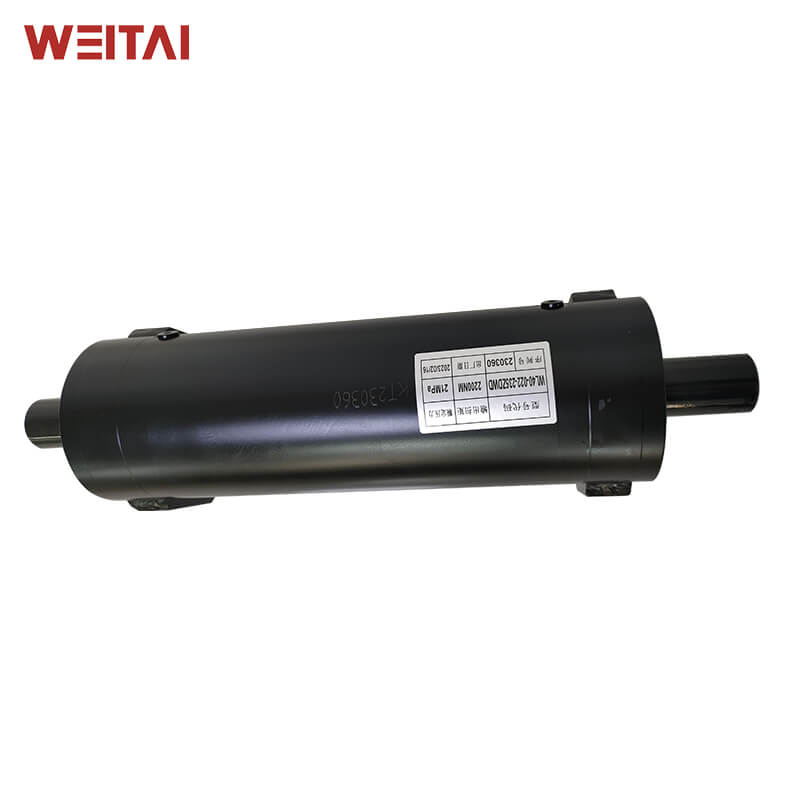

WL40 helical hydraulic rotary cylinders are made of high-quality forged steel and painted twice to work in the highly corrosive environment.
Integrated design for higher power density to work in the tiny spaces.
0 internal leakage, smoother operation, no external brake required.
Eliminating bearings, linkages, and brackets simplifies the design and reduces the bill of materials.
Hydraulic fuse prevents mechanical damage during extreme overload conditions.
| Model/Specifications | WL40-028 | WL40-050 | WL40-067 |
|---|---|---|---|
| HOLDING TORQUE(N·m) | 6100 | 10600 | 14300 |
| Standard Rotation | 220° | 220° | 200° |
| MAX STRADDLE MOMENT CAPACITY(N·m) | 4200 | 7600 | 10100 |
| RADIAL CAPACITY(kg) | 2040 | 3130 | 3900 |
| AXIAL CAPACITY(kg) | 2040 | 3130 | 3900 |
| DISPLACEMENT 180°(cc) | 775 | 1360 | 1650 |
| WEIGHT(kg) | 33.6 | 58 | 75 |
| Mounting Type | Foot | Foot | Foot |
| Output Mode | Splindle, Shaft | Splindle, Shaft | Splindle, Shaft |
Note: All the parameters are tested @21Mpa.
