| Rotation | 180°, 360° |
| Output Mode | Front Flange, Double Flanges |
| Mounting | Front Flange, Rear flanges |
| Drive Torque Nm@21Mpa | 18000 |
| Holding Torque Nm@21Mpa | 46000 |
| Max Cantilever Moment Capacity Nm | 55900 |
| Max Straddle Moment Capacity 180° Nm | 130500 |
| Max Straddle Moment Capacity 360° Nm | 197700 |
| Radial Capacity Kg | 10000 |
| Axial Capacity Kg | 6800 |
| Displacement 180° cc | 4650 |
| Displacement 360° cc | 9320 |
| Weight 180° Kg | 280 |
| Weight 360° Kg | 370 |
| D1 Mounting Flange Dia mm | 442 |
| D2 Pilot Dia mm | 315 |
| D3 Shaft And Endcap Flange Dia mm | 288 |
| D4 Housing Dia mm | 279 |
| F1 Mounting Hole Of Shaft Flange mm | M27×3 |
| F2 Qty of Shaft Flange Mounting Holes | 12 |
| F3 Bolt Circle Dia of Shaft Flange mm | 240 |
| F4 Mounting Hole Of Endcap Flange mm | M27×3 |
| F5 Qty of Endcap Flange Mounting Hole | 12 |
| F6 Bolt Circle Diameter of Endcap Flange | 380 |
| H1 Centerline To Valve Top mm | 169 |
| L1 Overall Length 180° mm | 551 |
| L1 Overall Length 360° mm | 836 |
| L2 Length Without Rotating Flange 180° mm | 493 |
| L2 Length Without Rotating Flange 360° mm | 775 |
| L3 Shaft Flange To Counterbalance Valve 180° mm | 196 |
| L3 Shaft Flange To Counterbalance Valve 360° mm | 338 |
| L4 Mounting Flange Thickness mm | 46 |
| L5 Shaft Flange To Mounting Flange Face mm | 54 |
| P1, P2 Port | ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4. See drawing for details. |
| V1, V2 Port | ISO-11926/SAE series, size 7/16. See drawing for details. |
| *Specification charts are for general reference only, please consult drawing for actual values and tolerances. | |

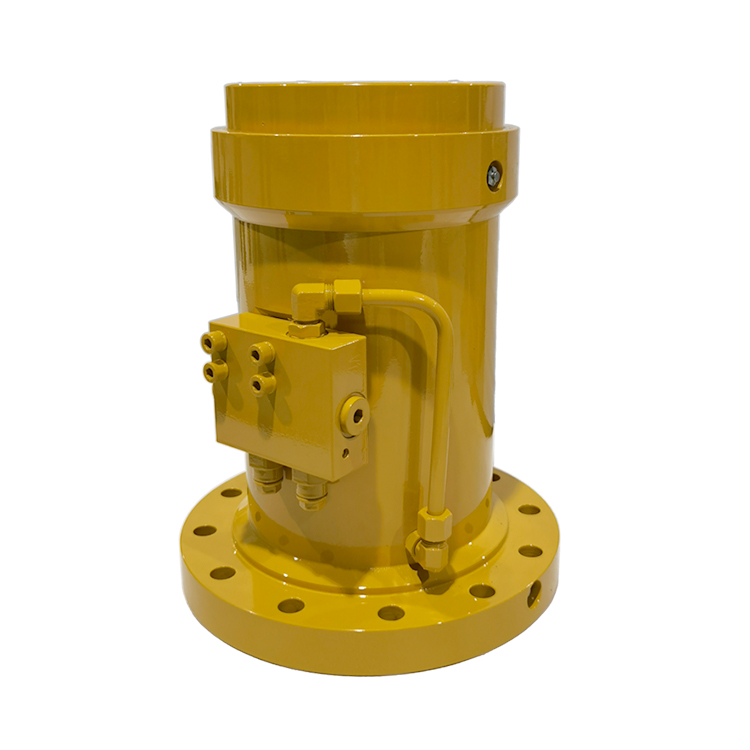

The counterbalance valve protects rotation in the event of a hydraulic line failure and protect the actuator against excessive torque loading. Hydraulic Schematic of Optional Counterbalance Valve. The counterbalance valve is optional on-demand. SUN brands or other top brands are available for different requests.

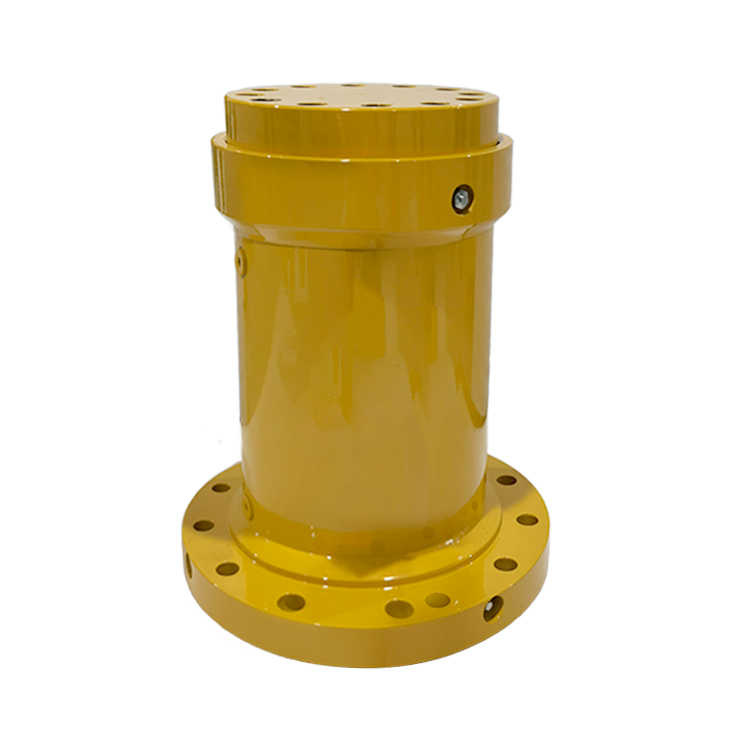

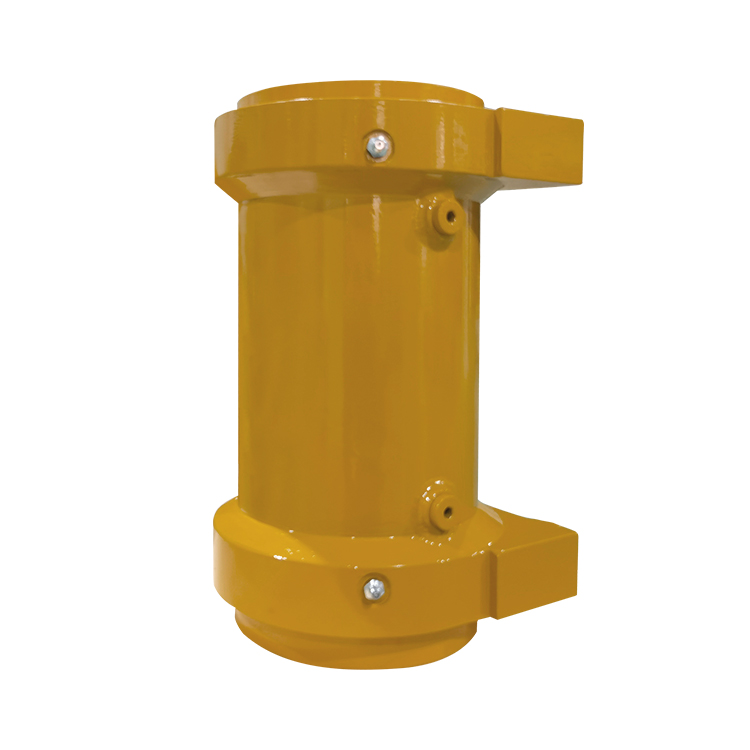

WL30 Series hydraulic rotary actuator is designed for harsh environment. It is heavy duty helical rotary device with torque output from 1900Nm up to 24000Nm at 21Mpa. The WL30 Series has rear flange mounting type and front flange mounting type, with 180 rotation degree and 360 degree rotation. It is widely used for Agriculture, Construction, Mining, Truck/Trailer, Energy, Marine, Material Handling, Military, etc.
