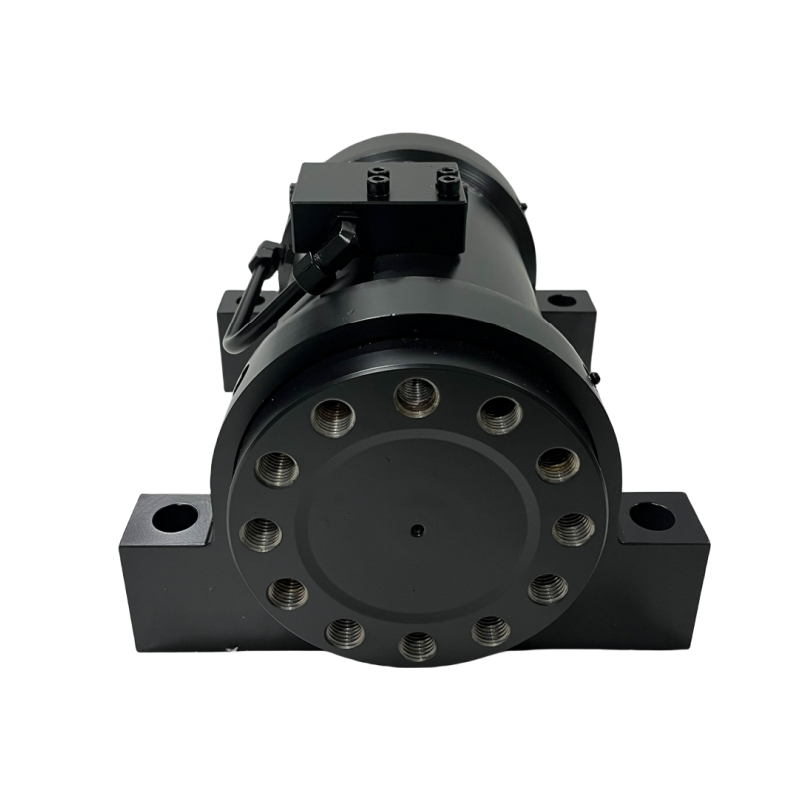

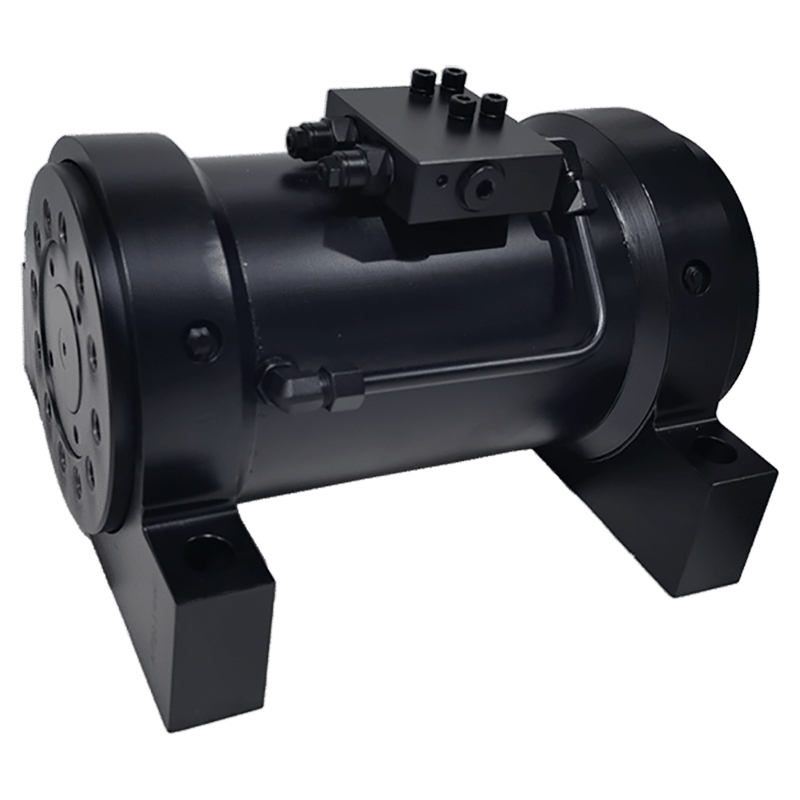

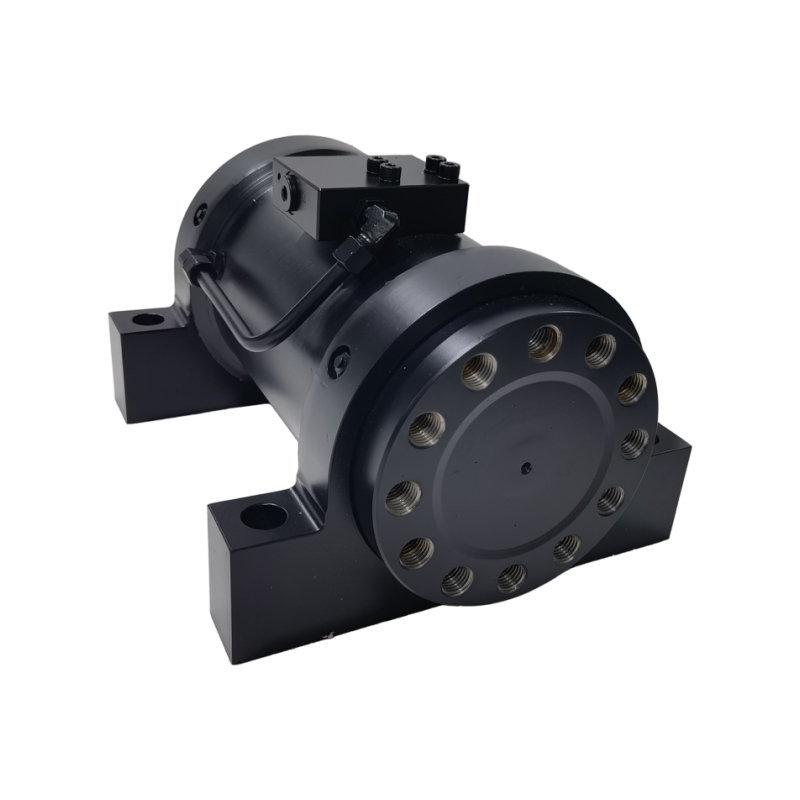

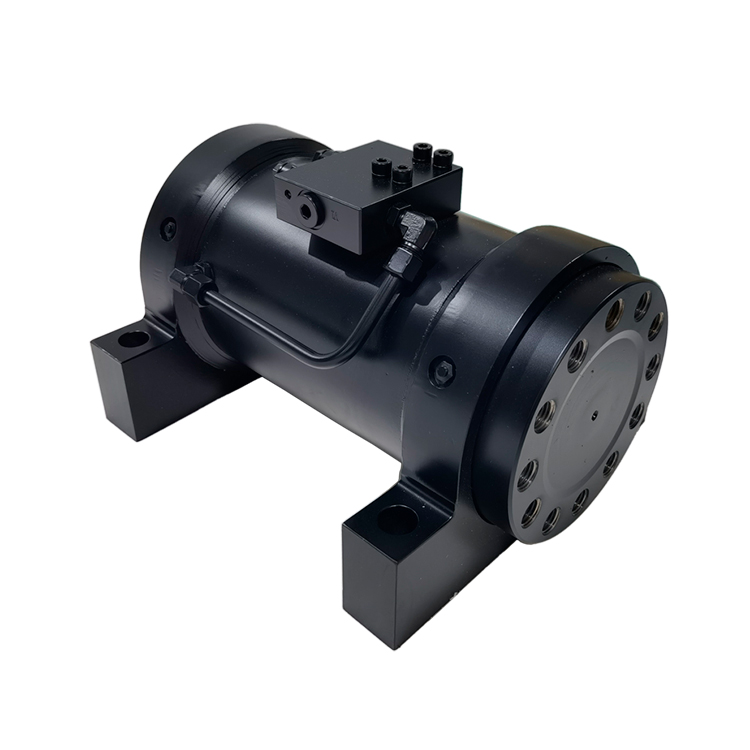

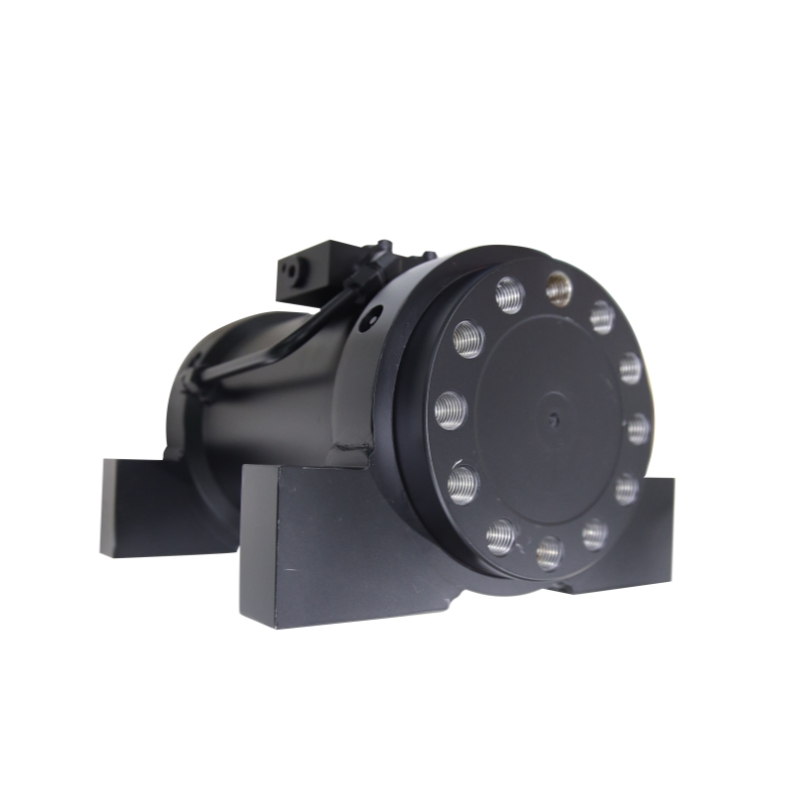

High-Quality Hydraulic Rotary Actuator Helical WL30 Series 14000 Nm Foot Mount Suppliers, Exporters

Model No.: WL30-140-180-QDYJ, WL30-140-360-QDYJ, WL30-140-180-SDYJ, WL30-140-360-SDYJ, WL30-140-180-QDWJ, WL30-140-360-QDWJ, WL30-140-180-SDWJ, WL30-140-360-SDWJ Rotation: 180°, 360° Torque: 14000Nm Counterbalance valve: Optional Interchangeable with HELAC, HKS, and MOVECO OEM quality 1-Year warranty

Send Inquiry

Product Description

📊 Performance Specifications

Rotation	180°, 360°
Output Mode	Front Flange, double flanges
Mounting	Foot
Drive Torque Nm@21Mpa	14000
Holding Torque Nm@21Mpa	35000
Max Cantilever Moment Capacity Nm	38800
Max Straddle Moment Capacity 180° Nm	98900
Max Straddle Moment Capacity 360° Nm	146000
Radial Capacity Kg	8200
Axial Capacity Kg	5900
Displacement 180° cc	3540
Displacement 360° cc	7080
Weight 180° Kg	220

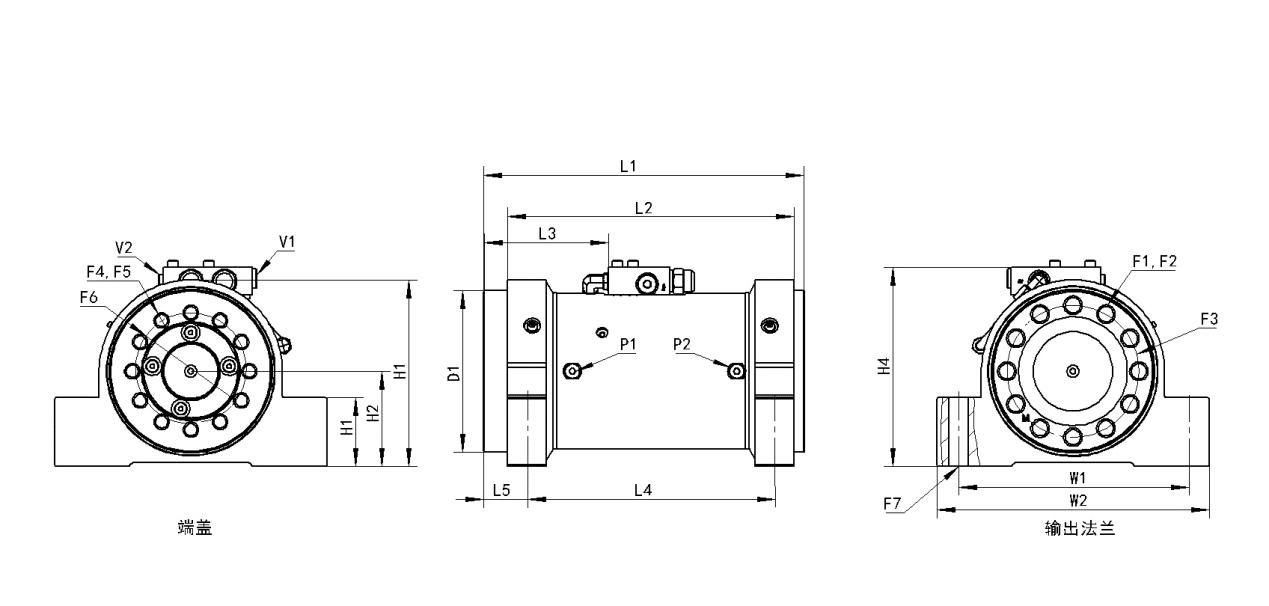

📏 Dimensional Data

D1 Mounting Flange Dia mm	263
D2 Housing Dia mm	254
F1 Mounting Hole Of Shaft Flange mm	M27×3
F2 Qty of Shaft Flange Mounting Holes	12
F3 Bolt Circle Dia of Shaft Flange mm	215
F4 Mounting Hole Of Endcap Flange mm	M24×3
F5 Qty of Endcap Flange Mounting Hole	12
F6 Bolt Circle Diameter of Endcap Flange	190
F7 Mounting Holes Of Housing Foot	M30
H1 Height Without Counterbalance Valve mm	305
H2 Height To Centerline mm	154
H3 Foot Height mm	110
H4 Overall Height mm	310
L1 Overall Length 180° mm	524
L1 Overall Length 360° mm	776
L2 Length Without Rotating Flange 180°mm	463
L2 Length Without Rotating Flange 360° mm	715
L3 Shaft Flange To Counterbalance Valve 180° mm	185
L3 Shaft Flange To Counterbalance Valve 360° mm	308
L4 Mounting Length 180° mm	400
L4 Mounting Length 360° mm	652
L5 Shaft Flange To Mounting Hole 180°mm	74.2
W1 Mounting Width mm	380
W2 Overall Width mm	447
P1, P2 Port	ISO-1179-1/BSPP ‘G’ series, size 1/8 ~1/4.
V1, V2 Port	ISO-11926/SAE series, size 7/16.

*Specification charts are for general reference only, please consult drawing for actual values and tolerances.

⚙️ Counterbalance Valve Protection

The counterbalance valve protects rotation in the event of a hydraulic line failure and protect the actuator against excessive torque loading. Hydraulic Schematic of Optional Counterbalance Valve. The counterbalance valve is optional on-demand. Top brands are available for different requests.

🚀 Industry Applications

Steering, Boom positioning, Drill positioning, Platform/basket/jib rotation, Conveyor positioning, Davit rotation, Mast/hatch positioning, Access ramp deploy, Attachment rotation, Shotcrete nozzle rotation, Pipe handling, Brush positioning, etc.

Mobile hydraulic rotary actuators WL30 Series offer heavy duty for harsh environment. The torque output from 1900Nm to 24000Nm at 21Mpa. The WL30 Series with foot mounting helical actuator features 180 degree and 360 degree rotation. The hydraulic rotary actuator is wide used for fields of agriculture, Construction, Energy, Marine, Material Handling, Military, Mining, Truck/Trailer, etc.

📈 Torque & Load Dynamics

Torque Versus Hydraulic Pressure and Loads: The driving torque and holding torque are approximately linear with hydraulic pressure. As moment loads increase, drive torque may be reduced by up to 15%.

Standard Valve for L30-17 and L30-25 180 Degree Models: Manufactured from aluminum, the valve blocks are bolted to a flat mounting pad on the actuator housing. Three bolts secure the valve block to the actuator. See specification pages for valve location. The pilot ratio is 3:1. The valves are set to relieve at 3300 psi ± 300 psi (228 bar ± 21 bar).

❓ Frequently Asked Questions

🔹 What rotation degrees are available for the WL30 series?

The WL30 series offers two standard rotation options: 180° and 360°, catering to various positioning requirements in heavy-duty applications.

🔹 What is the maximum torque output of these actuators?

At a hydraulic pressure of 21Mpa, the torque output ranges from 1900Nm up to a powerful 24000Nm, depending on the specific model configuration.

🔹 Is the counterbalance valve mandatory?

No, the counterbalance valve is optional and available on-demand. It is highly recommended for protecting the actuator against hydraulic line failure and excessive torque loading.

🔹 Does the drive torque remain constant under different loads?

While torque is generally linear with pressure, drive torque may be reduced by up to 15% as moment loads increase.

🔹 What industries commonly use the WL30 hydraulic rotary actuators?

They are widely utilized in Construction, Mining, Marine, Agriculture, Material Handling, and Military sectors for tasks like boom positioning and attachment rotation.

🔹 What are the valve settings for the L30-17 and L30-25 models?

Standard valves feature a 3:1 pilot ratio and are factory set to relieve at 3300 psi ± 300 psi (approximately 228 bar ± 21 bar).
